Recessed Block

Recessed Block

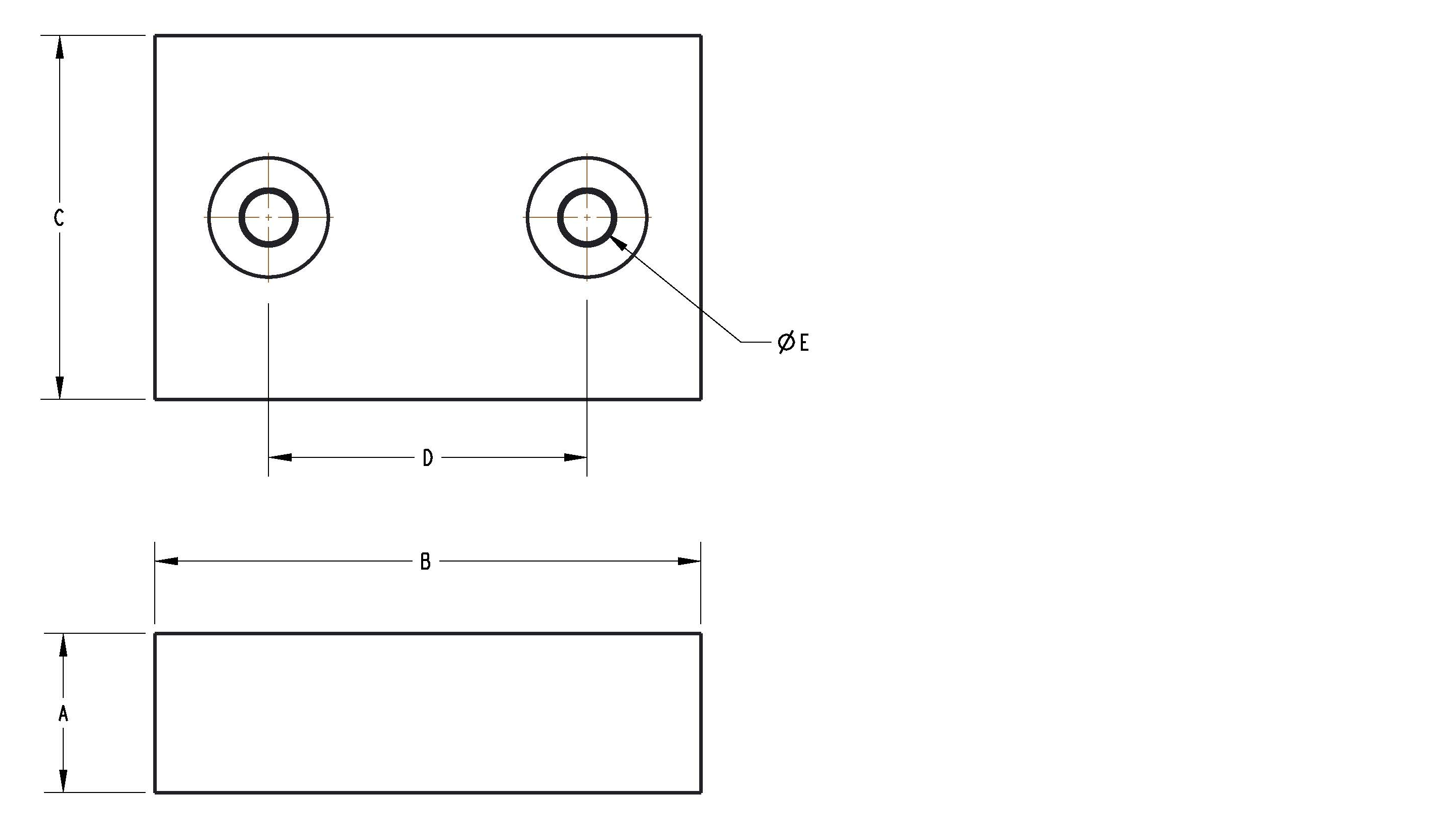

Series Part # A (mm) B (mm) C (mm) D (mm) E (mm)
1830 1830 10.20 50.80 25.40 28.40 6.40
1840 1840 38.10 127.00 63.50 88.90 7.10
1841 1841 76.20 152.60 65.00 89.00 15.80
1842 1842 76.20 137.60 65.00 74.00 17.60
1843 1843 88.90 254.00 127.00 209.60 12.70
1850 1850 44.50 152.40 101.60 88.90 14.20
1851 1851 38.00 114.00 100.00 10.00
Series Part # A (in) B (in) C (in) D (in) E (in)
1830 1830 0.40 2.00 1.00 1.12 0.25
1840 1840 1.50 5.00 2.50 3.50 0.28
1841 1841 3.00 6.01 2.56 3.50 0.62
1842 1842 3.00 5.42 2.56 2.91 0.69
1843 1843 3.50 10.00 5.00 8.25 0.50
1850 1850 1.75 6.00 4.00 3.50 0.56
1851 1851 1.50 4.49 3.94 0.39
